DC6
PRICE: REQUEST QUOTE

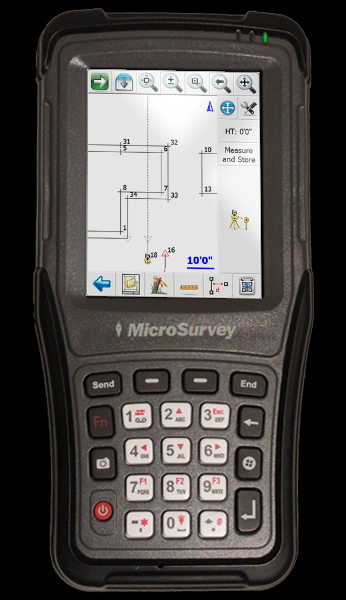

THE DC6
A reliable and feature-packed data collector, at an astounding price. The DC6 picks up where the DC5 left off; adding a faster processor, a 9-pin serial port, and more storage space.
(PRICE DOES NOT INCLUDE SHIPPING AND HANDLING,VAT AND LOCAL TAXES)
Description
PRICE: REQUEST QUOTE
THE DC6
A reliable and feature-packed data collector, at an astounding price. The DC6 picks up where the DC5 left off; adding a faster processor, a 9-pin serial port, and more storage space.
DELIVER MORE WITH LESS
The DC6 strikes an unprecedented value when it comes to a rugged handheld data collector. This feature-packed device is a simple yet powerful solution to your biggest field data challenges.
WORLD-CLASS SOFTWARE
Your choice of pre-installed software:
FieldGenius – Code-free linework, smart points and live graphics make FieldGenius the choice of any land surveyor that values productivity.
Layout – For the construction layout professional, Layout gives you all the tools you need to layout your points and lines accurately and easily.
Additional information
| WLAN | 802.11 a/b/n |
|---|---|
| Cellular | 3.75G cellular modem |
| Five Band UMTS/ HSPA+ (WCDMA/ FDD) | 850/800,900, 1900 and 2100 MHz |
| Quad-Band GSM | 850/900/1800/1900 MHz |
| USB | High speed USB-OTG port |
| Display | Full VGA sunlight readable TFT with a 480 x 640 resolution |
| Keypad | Glove proof alphanumeric keypad Dual sustomisable shortcut keys |
| OS | Full blown Windows embedded handheld 6.5 Professional |
| Bluetooth® | Class 2 Bluetooth® 2.1 EDR |
| RS232 | Industrial standard DB9 |
| Internal | 512 MB program memory, 8 GB storage capacity |
| Micro SD | SDHC supported Micro SD card slot |
| USB OTG | Mass-Storage device support |
| Processor | TI Sitara™ AM335x running at 1Ghz |
| Battery power | Removable Li-Ion smart battery 3400mAh 7.2V 24.48Wh |
| Operating time | Up to 10 Hours |
| GNSS module | 72 channel uBlox module with raw data output capabilities |
| Solutions | GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, Galileo E1B/C – SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN |
| Update rate | 1 Hz |
| Accuracy | 2.5 m CEP (Auto.) / 2.0 m CEP (SBAS) |
| Startup | Cold: 30sec. / Hot: 1sec |
| Camera | Auto focus 5MP Dedicated camera key |
| Dimensions | 192*93*42mm |
| Weight | 575g (Including Battery) |
| Operating temp. | -30°C to +60°C |
| Protection class | IP65 dust and waterproof |
| Humidity | 5 to 95% non-condensing |
