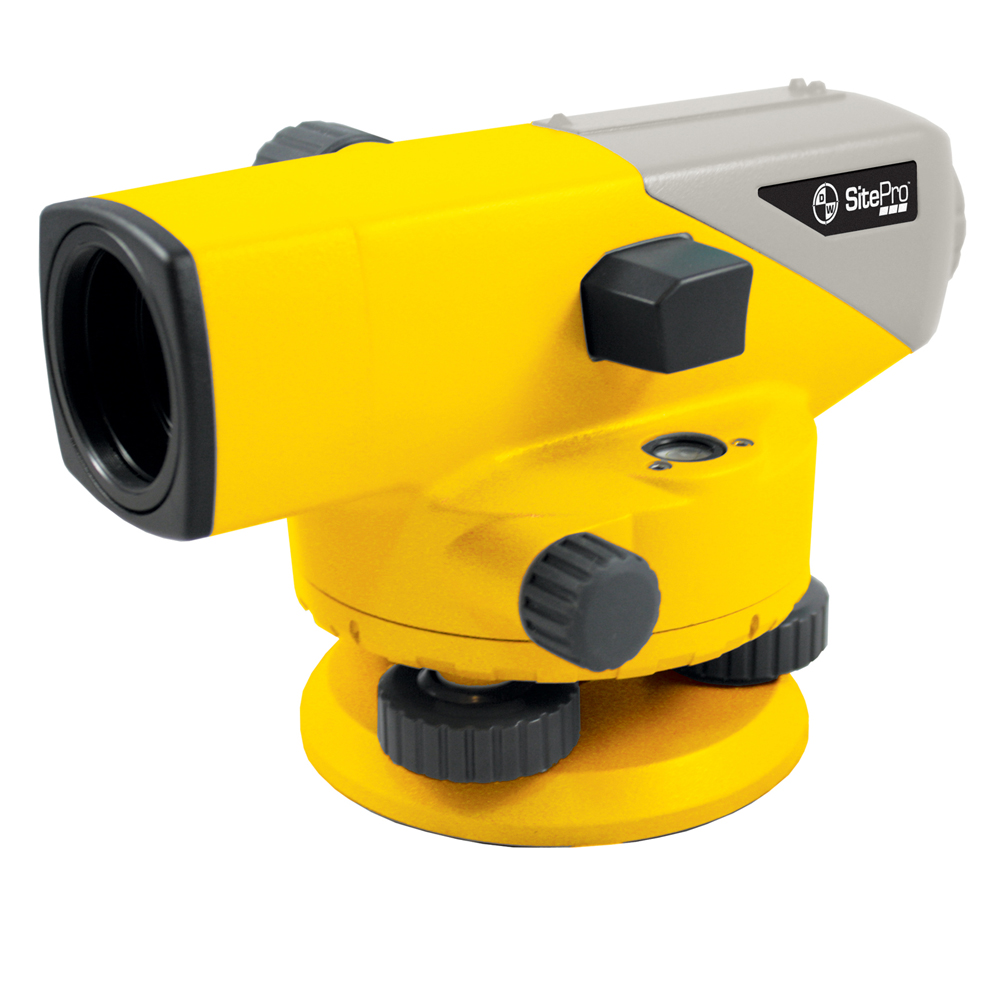

24-POWER PROFESSIONAL AUTOMATIC LEVEL
$280.00
These auto-levels feature excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator levels and stabilizes the line of sight despite fine vibrations, providing high precision leveling results.
(PRICE DOES NOT INCLUDE SHIPPING AND HANDLING,VAT AND LOCAL TAXES)
Description
These auto-levels feature excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator levels and stabilizes the line of sight despite fine vibrations, providing high precision leveling results.
- Compensator is designed with four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient
- Horizontal and vertical cross hairs with 1:100 stadia lines – measures level, alignment & estimates distance
- Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
- Peep sight to aid in sighting
- Solid leveling metal base with three precision leveling screws provides stability and accuracy in all weather and job site conditions
- 360° Graduated horizontal circle in 1-degree increments for layout applications
- 10’/2mm circular bubble vial with 90-degree mirror for accurate and quick set-up
Additional information
Magnification | 24X |
---|---|
Leveling Accuracy | ±1/16-in at 150-ft (±1.5mm @ 45m) |
Working Range | 300-ft (90m) |
Angular Accuracy | 1° |
Field of View | 1° 30’ or 2.6ft@100ft |
Min. Focus Distance | < 1-ft |
Compensator range | +/-15’ |
Comp Setting | ±0.3” |
Model | 25-SK24X |
